49cc - 2-Cycle Gas Bicycle Motor Kit 49cc

bicycle engine kit

NEW 2012 49CC MOPED BICYCLE KIT

49cc 2-Cycle Gas Bicycle Motor Kit

This kit includes everything you need to convert most any V-frame bike to a gas powered scooter/moped but the tools.

INTRODUCING THE BRAND NEW LIMITED EDITION UPGRADED 49CC BICYCLE ENGINE KIT !

THESE KITS INCLUDE THE FOLLOWING UPGRADED PARTS AND ENHANCEMENTS :

- TOP OF LINE ENGINES OUT IN THE MARKET
We have only the best quality versions of the engines from our factory in China.
- NEW STYLE DELUXE THROTTLE LEVER
The latest design for the throttle lever.

- UPGRADED CHROME "HUSH" EXHAUST AND SUPPORT
2 dB quieter than the original muffler.

- STAND ALONE FUEL FILTER
Extra protection and prevents any dirt from getting into the engine.

- LARGE FRAME TUBE ADAPTER
Helps when mounting on bikes with bigger down tube frames.

- ALLOY PUSH CLUTCH LEVER
Makes clutching easier.

To purchase call 512.587.2364

Model :	GBK 49cc
Engine type :	Single cylinder, air-cooled, 2-stroke
Power * Rotary Speed	Rated Power : 1.15Kw / 5000r / min (1.6HP/5000r/min) Max Power : 1.6Kw / 6000r / min (3HP/6000r/min)
Ignition Mode :	CDI
Fuel type :	No. 90
Lubrication Oil :	Motorcycle Synthetic 2 Stroke Oil
Mixing Ration for Fuel and Oil :	16:1 for new sets (20:1 after running approx 500Km)
Spark Plug :	Z4C 14MM
Fuel Consumption :	1.5L / 100Km
Clutch Type :	Friction Plate / Dry
Speed Limitation :	30-32km/hour

These engines have a top speed of about 25 MPH depending on various factors (pretty fast on a bicycle). Average mileage ranges from 100-150 MPG!

NO Registration, license or insurance needed! (In Some States considered Peddle Assist) Be Sure to check your local laws and regulations before you hit the road.

NO Engine Stamp or markings indicating the engine size

With the built in clutch you maintain full function of the original bike. Pedal, shift, and ride your bike like normal. The engine kit only adds about 19lbs to your bike. When you want to engage the engine simply release the clutch hand lever and the engine springs to life. To power off simply press the included kill switch.

NEW WITH PACKAGE - TOP OF LINE ENGINES OUT IN THE MARKET

NEW WITH PACKAGE - NEW STYLE DELUXE THROTTLE LEVER WITH NEW GRIPS

NEW WITH PACKAGE - UPGRADED CHROME "HUSH" EXHAUST AND SUPPORT

NEW WITH PACKAGE - ALLOY PUSH CLUTCH LEVER

Black Teardrop Gas Tank

44 Tooth chrome sprocket with 9 holes

Magneto with kill switch (on throttle)

Clutch and throttle cable

Drive chain idler

Low profile carburetor assembly

High quality Japanese main bearings

CD ignition assembly

Standard bike chain

Chain tensioner guide

Chain guard

Spark plug

All the needed mounting brackets, gaskets, and hardware.

Complete easy to follow installation instructions .pdf via email

Now only $205 Shipped to your door. Free shipping is only for the contiguous 48 United States, please contact us if you live outside the U.S.

This kit comes with every thing that you'll need to convert any regular 22" - 28" single or multi speed V-Frame mountain bike or beach cruiser into a motorized bike. You'll still be able to pedal the bike and ride like normal or start the engine by releasing the clutch lever. There's no rope pulling needed. You can stop or start the engine as you ride. Twist grip hand throttle controls speeds from 25 to 30 mph depending on the gear ratio. This kit comes with a 44 tooth 9 hole chrome racing sprocket with easy to install 9 bolt universal mounting hardware that clamps over the rear wheel hub and spokes. This creates a totally independent drive sprocket and chain that does not interfere with your current drive chain or peddling.

Required:

1. Requires basic mechanics, simple tools and patience

2. You may have read somewhere else that this is a very easy couple hour installation, this is NOT the truth. My first install took me about 8-10 hours total. I also had a buddy give me a hand when needed...

*Our pre-installed bikes are $550+ depending on bicycle model and optional accessories.

*We can install on your V-Frame bike for $200-$300 depending on bike, send us a pic for a free estimate.

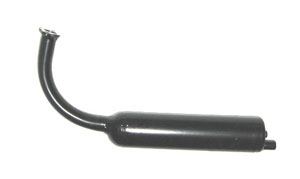

Scroll down to see detailed pictures - Exaust pipe / tank colors come in black or chrome, you may specify when you order.

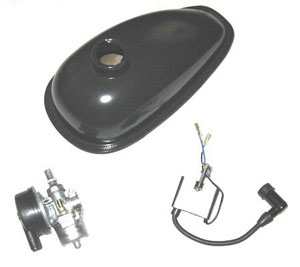

cdi parts carb gas tank bicycle motor kit

44 tooth sprocket with mounting hardware bicycle motor

Free Shipping & Insurance to the continental 48 States! Shipping to Hawaii and Alaska is available for an additional charge. For exact shipping price quote to Hawaii, Alaska or other locations outside the continental

US please call us at 512.587.2364

Disclaimer:
Operating this motorized bicycle or bicycle engine kit involves some risk of serious bodily injury . Buyer accepts responsibility for any and all vehicle operation that may lead to personal injury, economic loss, social distress, other losses, costs and damages. Seller is not responsible for injuries and/or damages resulting from operating this motorized bicycle or bicycle engine kit .

Shipping & handling:

Buyer agree to pay S/H fee $0.00 any where in U.S. via FEDEX GROUND. (2-6 days)

(AK, HI, APO, EPO, PR, GU, PO Box add $20 for the USPS priority mail)( no insurance for USPS shipping)

U.S.A. ( 2-3 days)

Canada ( USPS International priority mail, 4-10 days), additional $29.95

All products are shipped via Fedex or United States Postal Service either by regular airmail (3-5 days), Priority Mail (2-3 days), or Express Mail, depending on the types of products purchased.
All orders will be ship within 2 business days (mostly within 24hrs).
Default shipping is Fedex Ground, unless specified or arranged otherwise.
Shipping cost included on listing is for US Continental States only.
PO box, APO, FPO, HI, AK, PR, GU, VI and other countries, shipping and handling fees cost more. Please contact us for shipping quote first before buying. We won't be responsible for higher shipping cost if you Do NOT check with us first.
International shipment transit time does fluctuate.
we will not response for the custom duty, buyer has to pay by themselves.
We reserve rights to cancel transaction if shipping address is not confirmed; we will refund your payment.

We are not responsible for shipping damages or lost. We insure all items we ship. It is your responsibility to accept delivery in person and inspect package before accepting delivery. Please make sure to open the box immediately when taking delivery, to avoid potential issues. Do NOT sign for any damaged package and report it to driver immediately, have driver sign for damage.
We will help to work with carriers to resolve shipping issues, but we are not responsible resend product before we get a confirmation from insurance claim or received the returned item from customers.

*PLEASE CONNECT THE KILL SWITCH TO THE "BLUE COLOR WIRE" AND YOU CAN ADD A HEAD LIGHT OR TAIL LIGHT ONTO YOUR BIKE BY CONNECTING THE 6 VOLT WHITE AND BLACK COLOR WIRES FROM THE ENGINE SO THAT YOU CAN RIDE IT AT NIGHT !!

ACCESSORIES AND SPARE PARTS ALSO AVAILABLE !!

The instructions that come with the kit are hard to follow, EMAIL ME for a detailed installation manual with pictures.

Model :

GBK 49cc
